48M Series

  • Category：Metal waterproof pushbutton switch
  • Number of views：225order
  • Release Date：2011/6/23
  • Overview


Explanation:

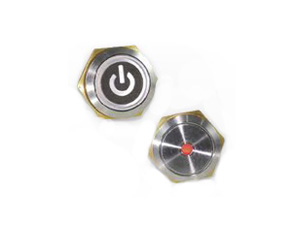

IP67 sealed waterproof pushbutton switch with metal case
Switch size :Φ21.7 x 20
The opening size of the installation panel: Φ16.50
Optional lights with different colors (point lights, or ring lights)
Operating current: UL (USA) Certified 400mA 32VAC, 100mA 50VDC, 125mA 125VAC
Gold plated contact
Operating temperature: -40 C to 85 C
Suitable for outdoor applications, easy installation, a wide range of applications in communications, instrumentation, data processing, process control,
Transportation equipment and other industrial occasions 【Download PDF Details】
