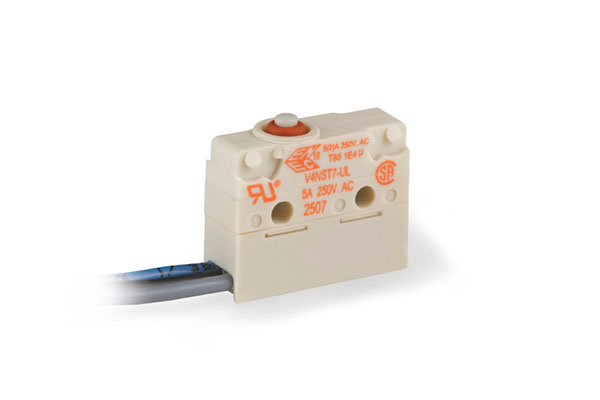

V4N Series

  • Category：Waterproof micro switch
  • Number of views：350order
  • Release Date：2011/6/23
  • Overview


Explanation:
IP67 sealed waterproof switch
Thermoplastic grease plastic housing
Size: 20 x 10 x 6
Maximum operating current: 5(2)A 250VAC ENEC (European) certification
5A 250VAC UL (USA) Certified
Operating temperature: -40 C to 85 C (special products up to 120 C)
The maximum mechanical life is 5 million cycles
All kinds of leads of the same length can be matched
A variety of levers of different lengths and shapes are available
Used in a variety of precision control applications 【Download PDF Details】
Previous:Nothing
Next:V4L Series
